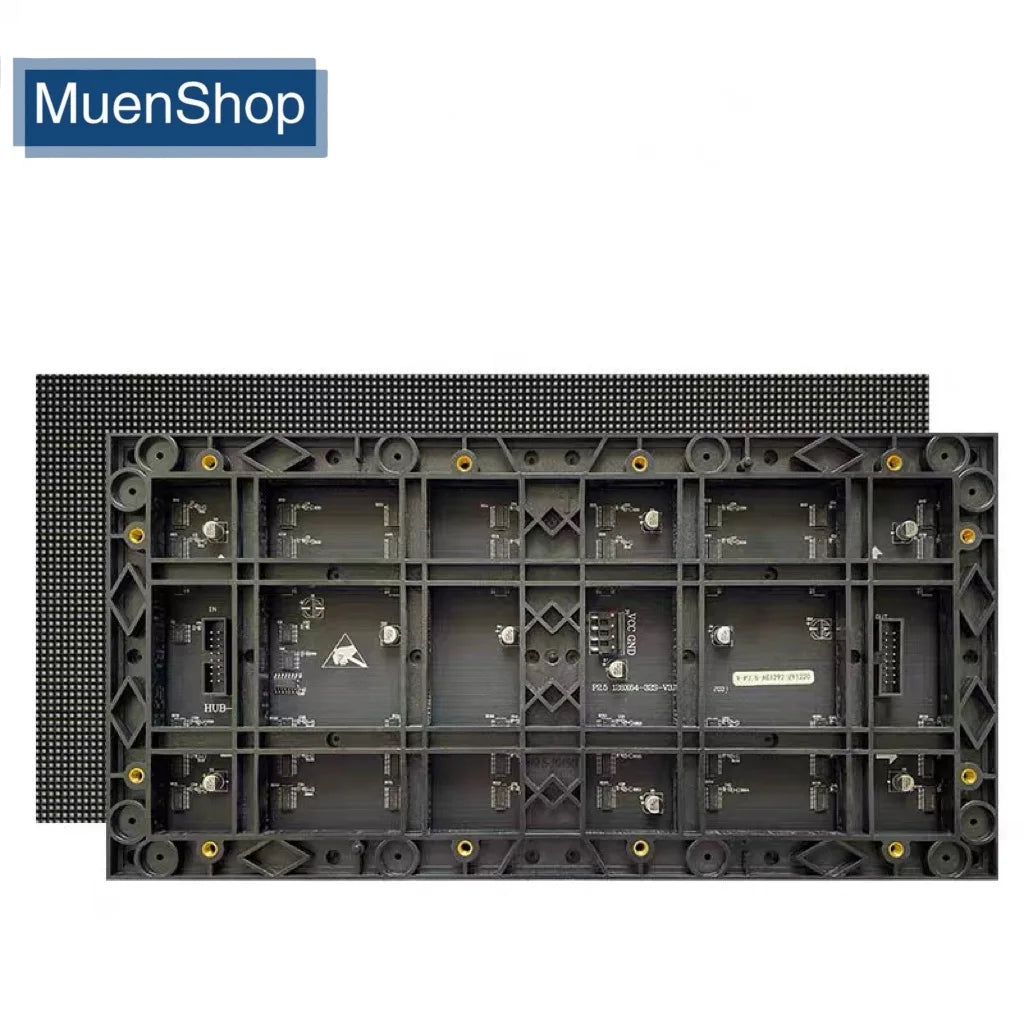

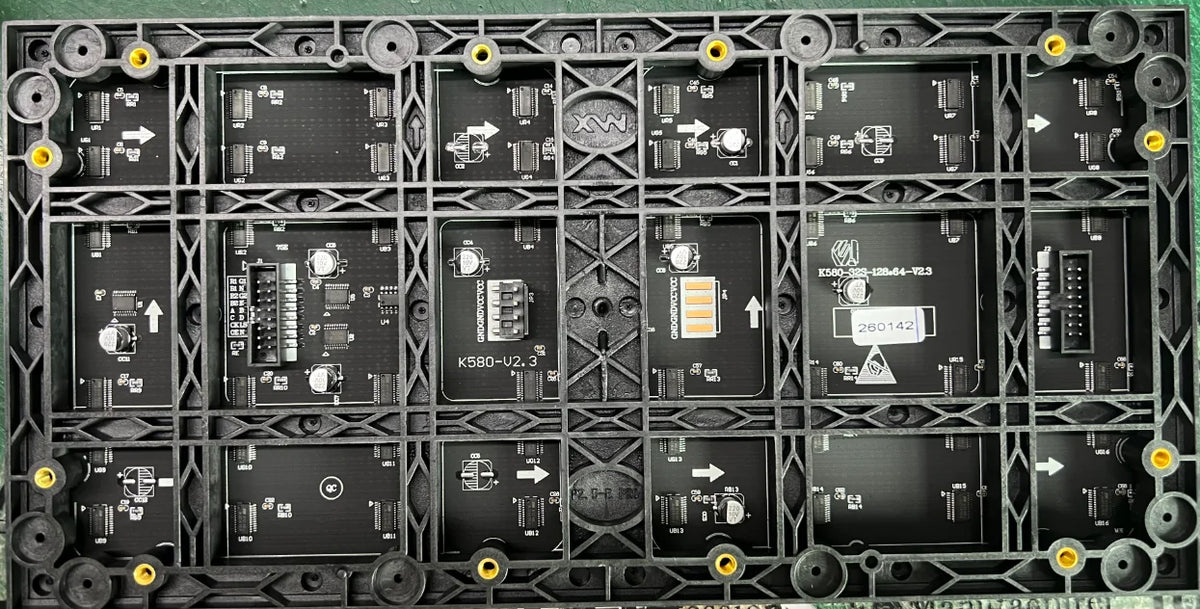

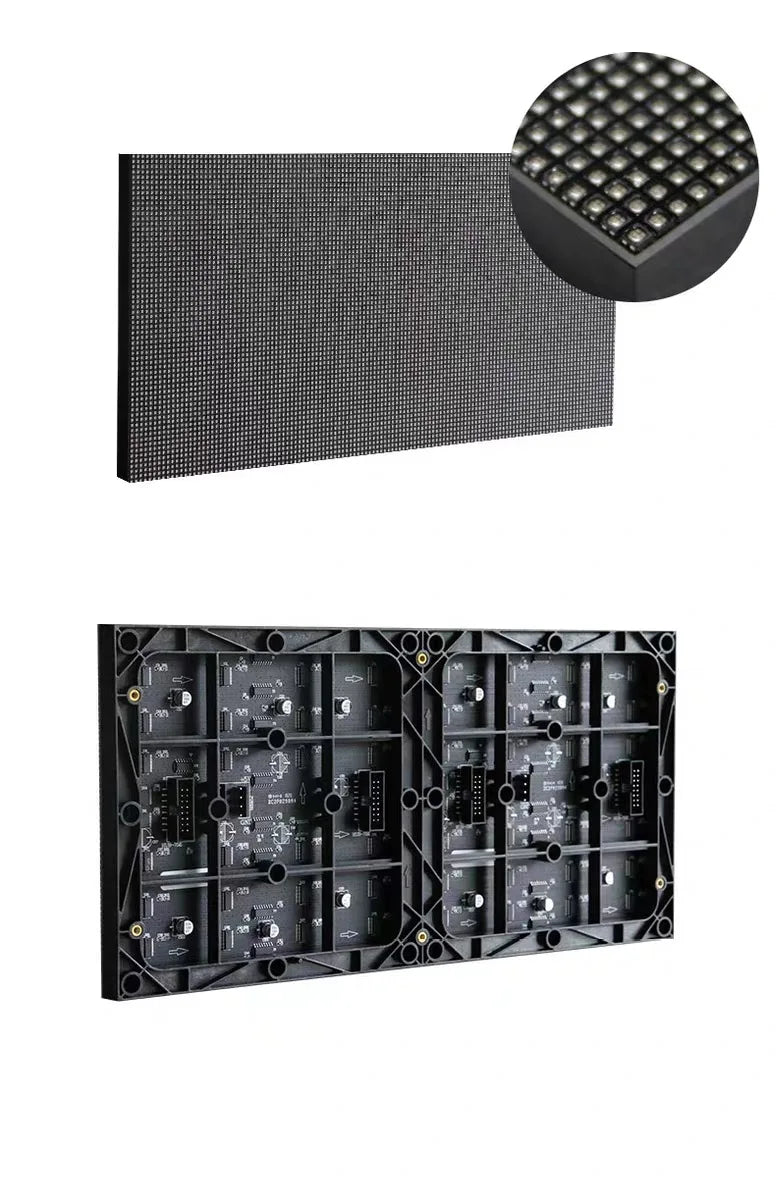

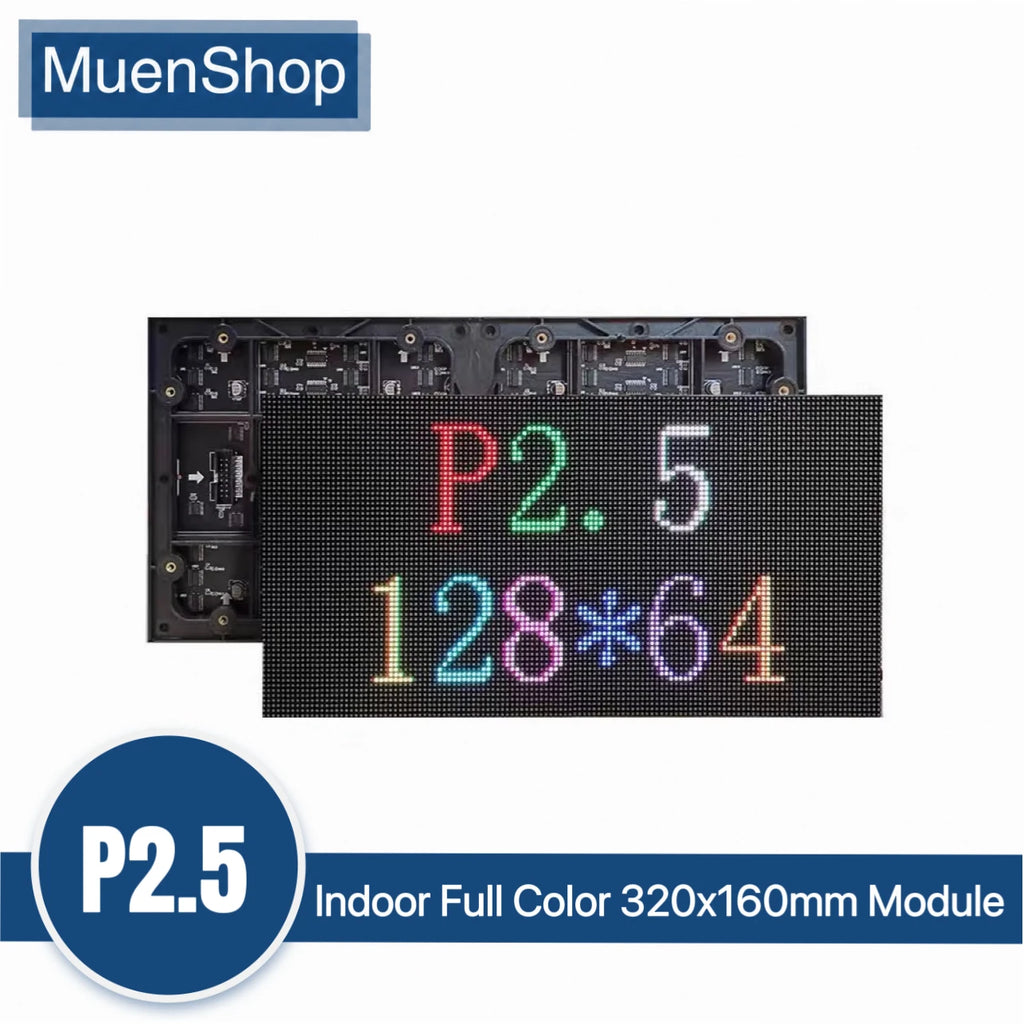

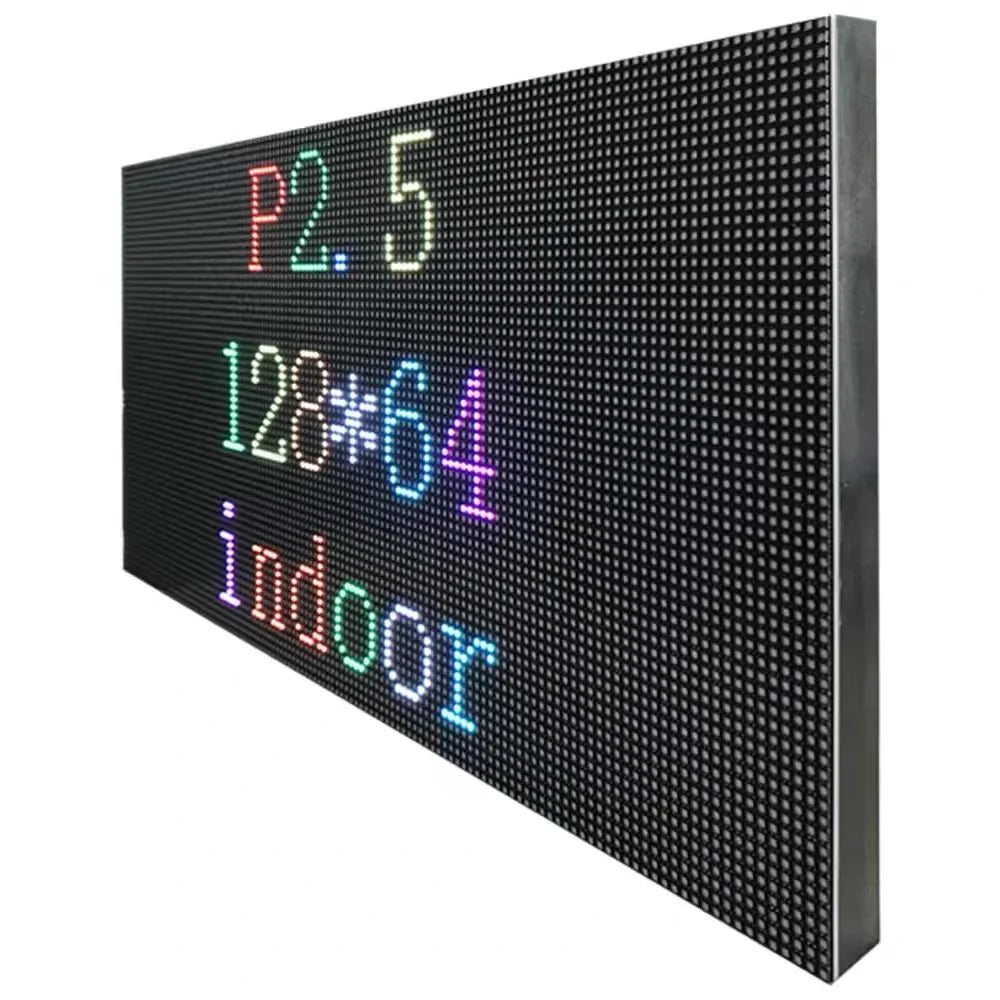

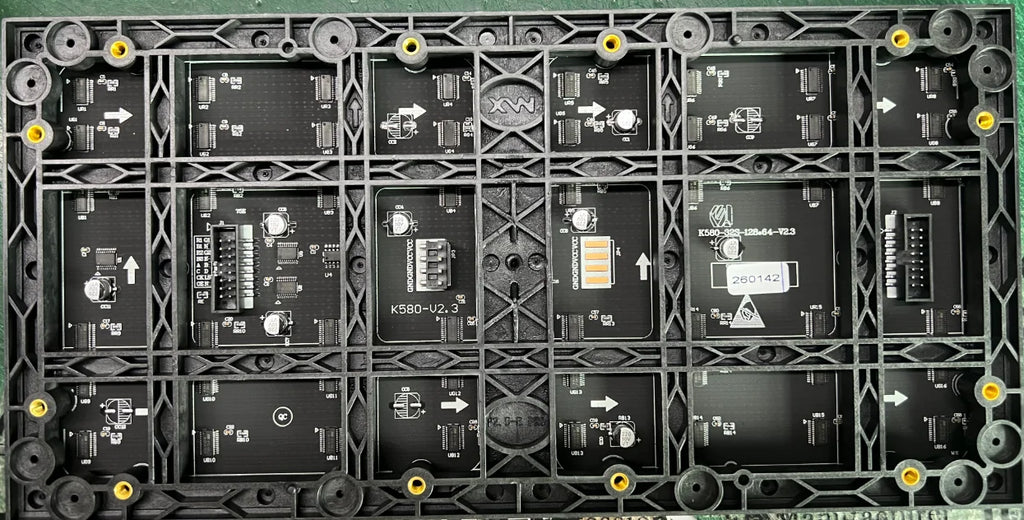

PixelCraft™ P2.5 Indoor RGB LED Module (320x160mm)

QAR 46,95 QAR 186,95

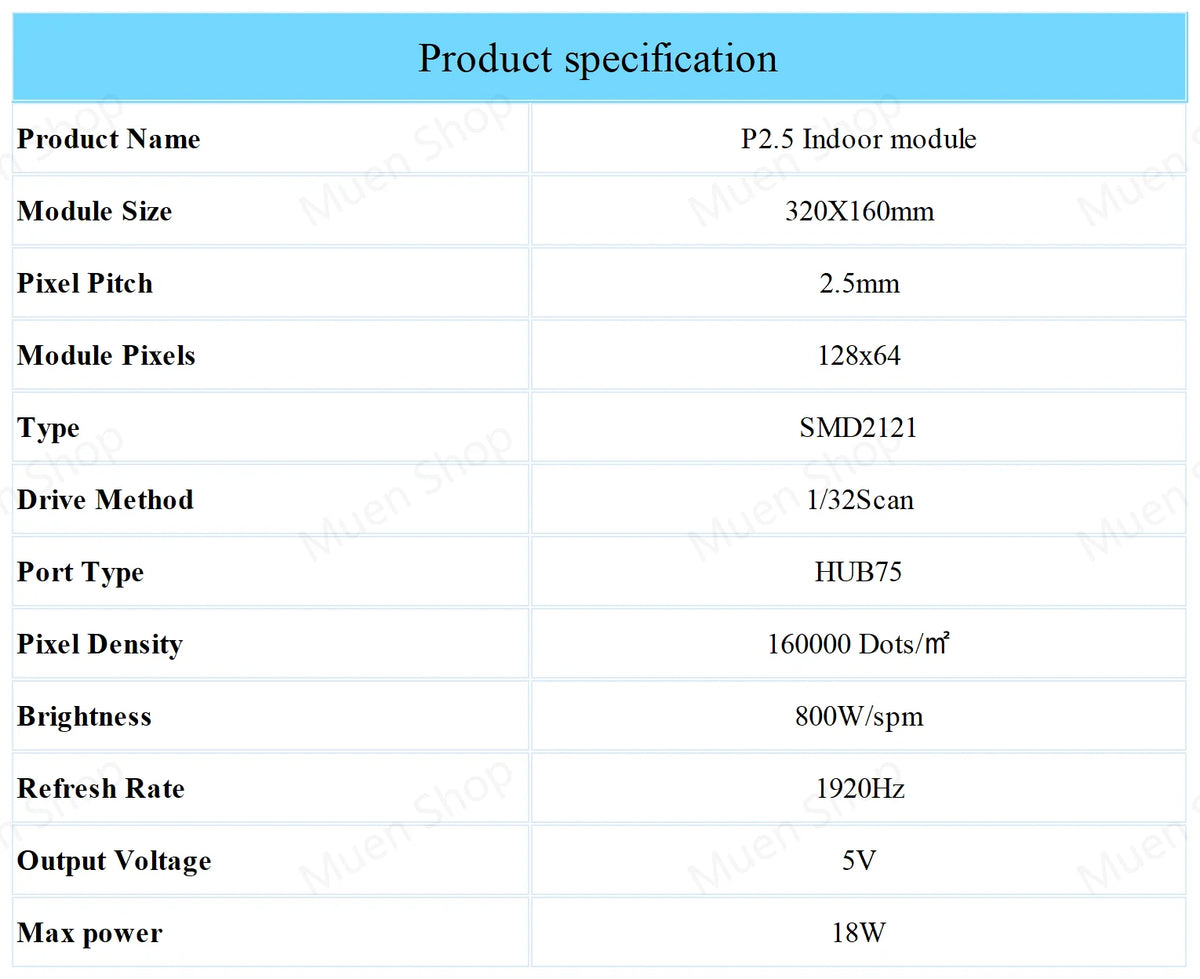

SPECIFICATIONS

Technical Specifications: MUEN LED P2.5 Indoor Module

General Information

Brand Name: MUEN LED
Model Number: MZ-I-P2.5-320x160mm-32S-M
Product Type: Indoor Full-Color LED Video Display Module
Module Dimensions: 320 mm (W) × 160 mm (H)
Module Weight: 0.4 kg
Customization: Fully Supported (Custom Configurations Available)

Optical & Display Performance

Pixel Pitch: 2.5 mm

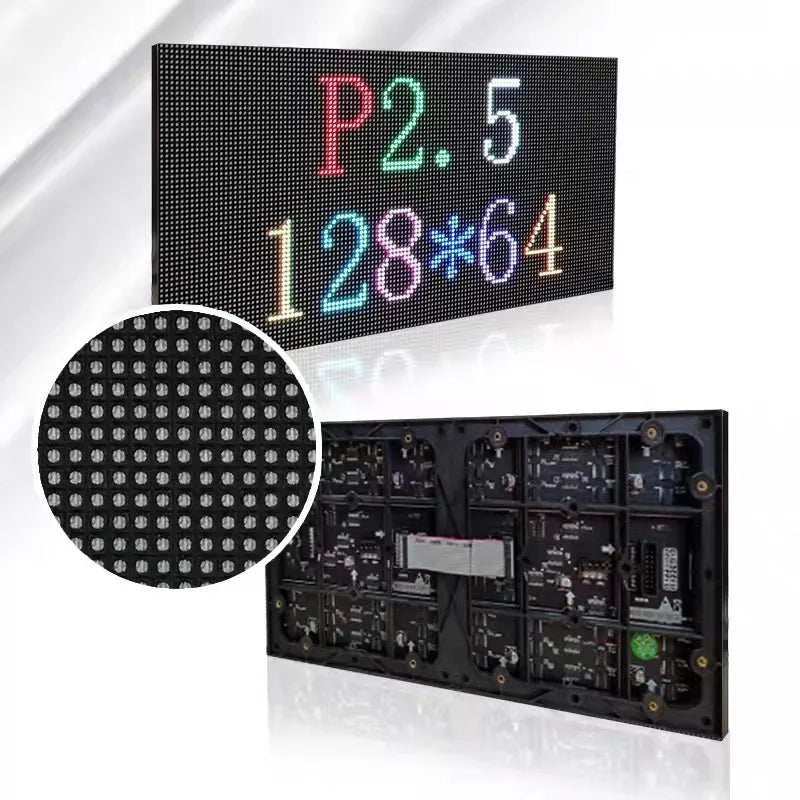

Module Resolution: 128 × 64 Pixels (8,192 dots per module)
Pixel Density: 160,000 dots / m²
LED Package Type: SMD2121 (3-in-1 Surface Mount Device)
Color Capability: Full RGB Spectrum (Full Color Display)
Display Function: HD Video, Graphics, and Animated Content
Refresh Rate: 1,920 Hz (Flicker-Free Performance)

Electrical & Drive Specifications

Drive Mode: 1/32 Scan Dynamic Constant Current

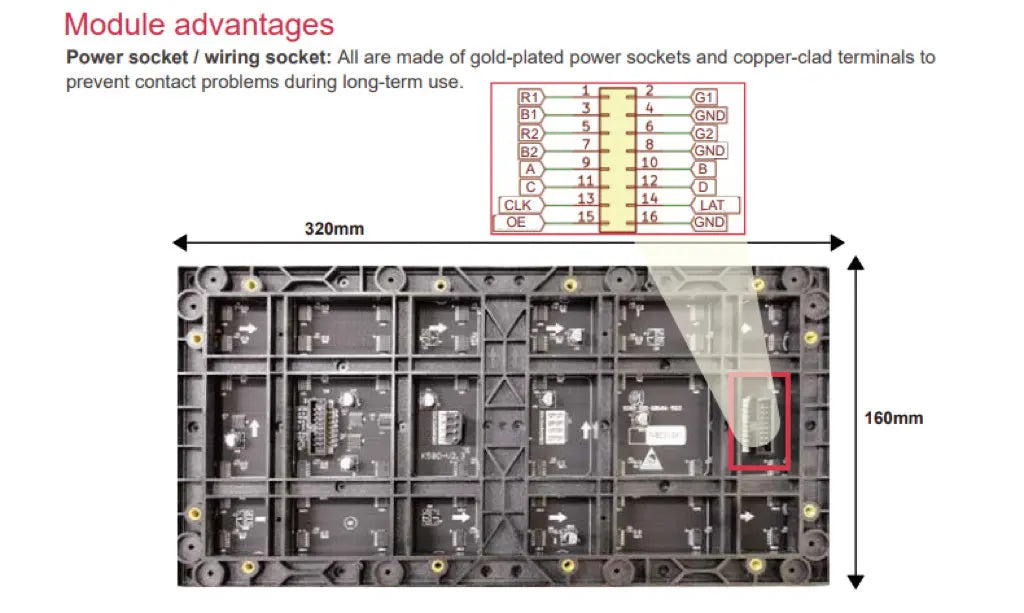

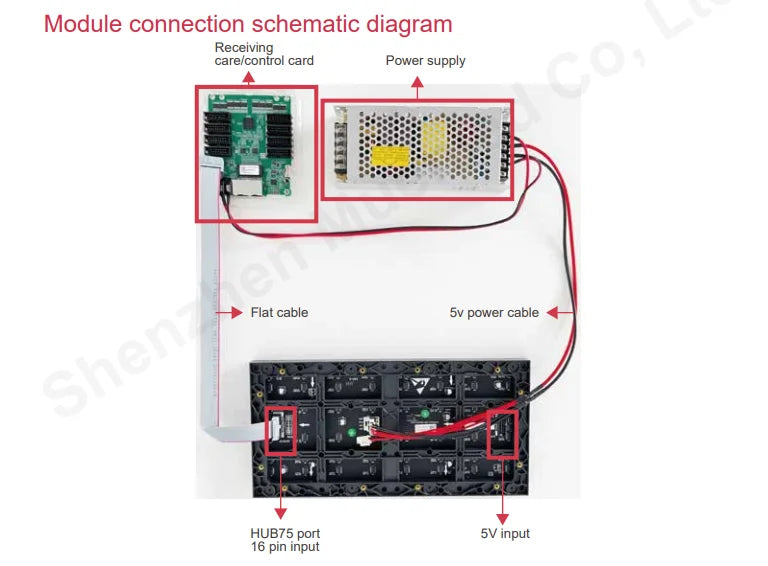

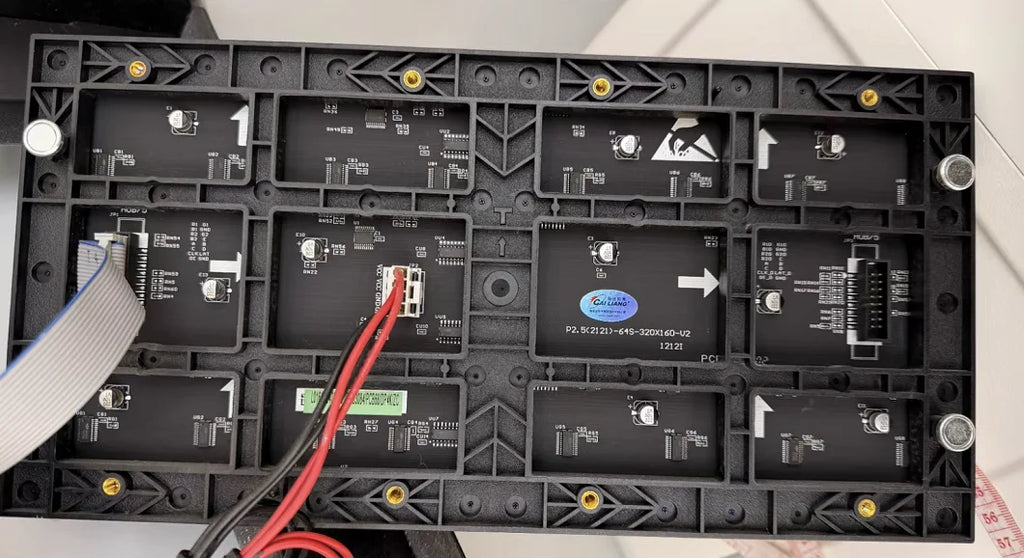

Data Interface Port: HUB75 Standard 16-Pin Interface
Operating Input Voltage: DC 5V
Power Consumption: 25W per module

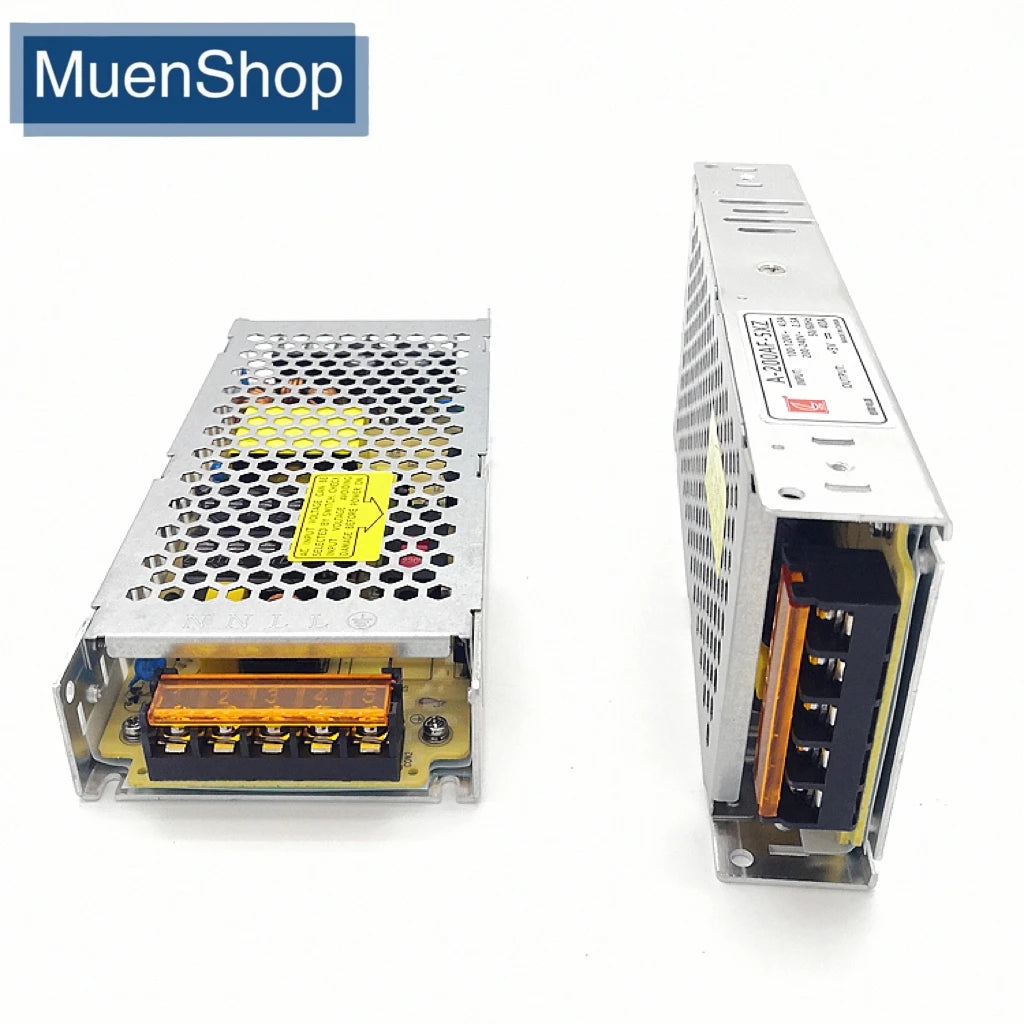

(Recommended Setup: One 200W DC5V power supply powers up to 5 modules)

Safety & Environmental Standards

Application Environment: Indoor Spaces (Conference rooms, control rooms, retail displays, and video walls)
Chemical Safety: Non-Toxic, Eco-Friendly (Free from High-Concern Chemicals & Harmful Additives)

Purchase notice

Dear buyer,
1.Different batch or different company's led module can't be used together because the color ,brightness,PCB board and screws holes are different. So please buy all led modules of full led display screen at one time.If possible, it is recommended to buy some spare parts to replace the broken module.

2.The led module picture of PCB board and screws holes in the description maybe different from what you receive because of the updating version.If you have desinated PCB board and module hole positions, please contact us in advance.

3.lf you need unconventional modules, please contact us for customization.

4.The modules does not confirm support for esp32 control mode.Please purchase samples for testing before making bulk purchases

Thank you!

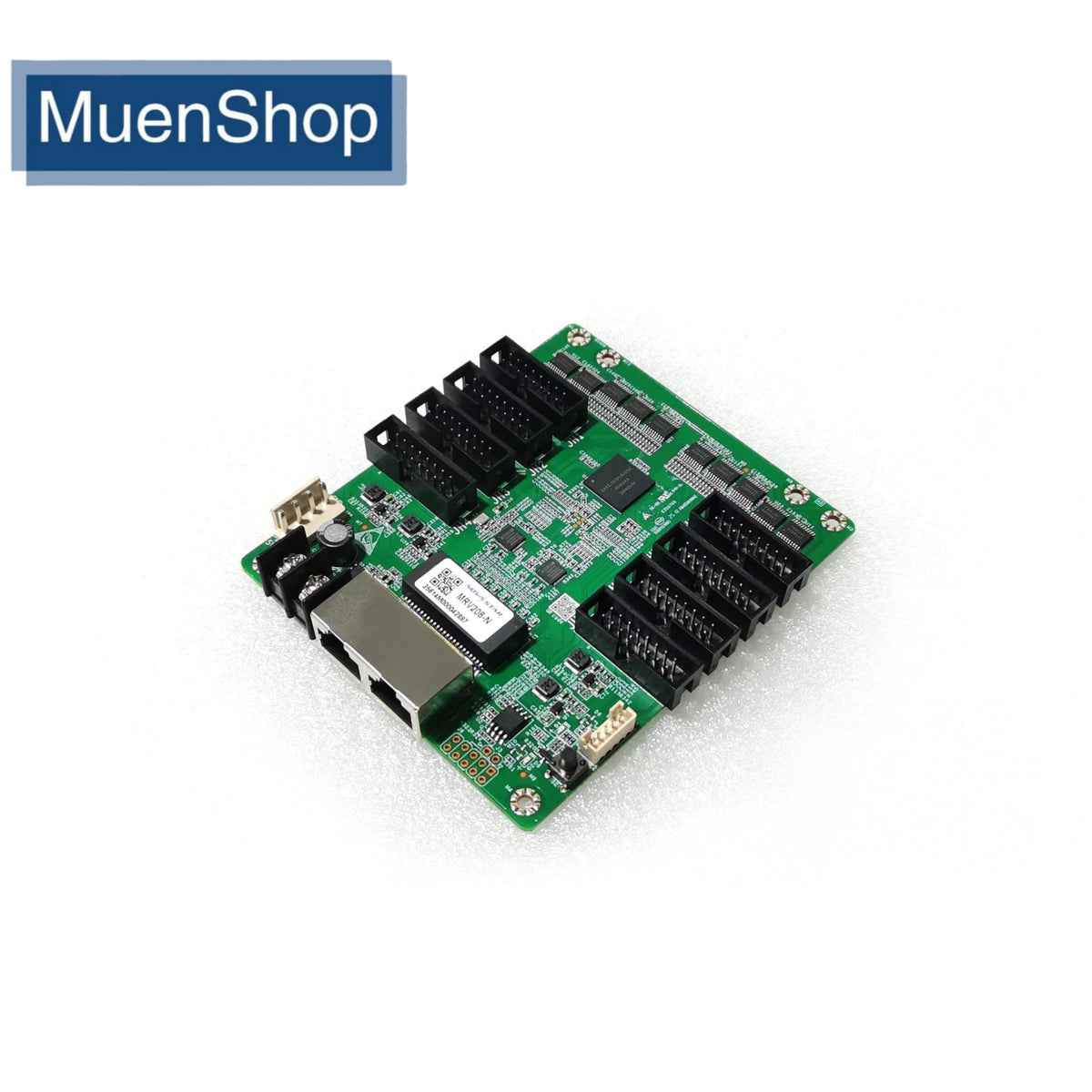

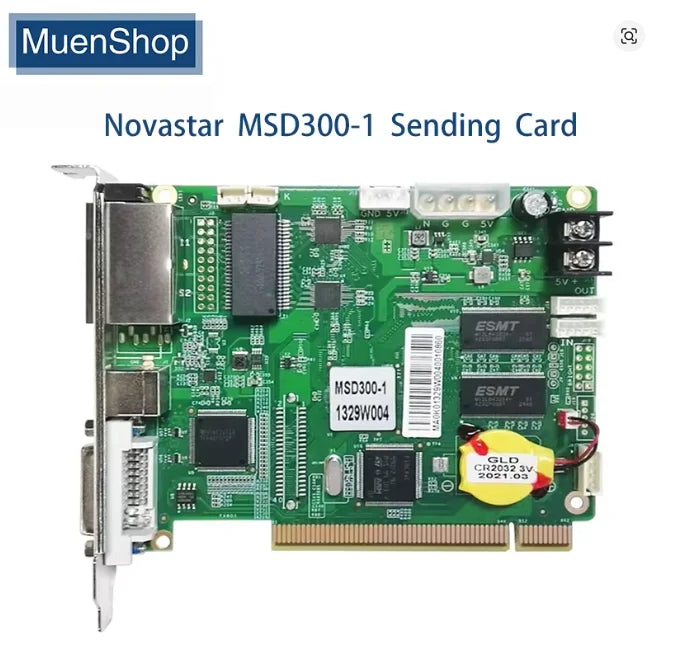

Can be used with modules to build screens (Click on the picture)
